Capacity in Tons	10 Tons	20 Tons	30 Tons	50 Tons	75 Tons	100 Tons	150 Tons	200 Tons	250 Tons	300 Tons	400 Tons	500 Tons
Bed Size LR X FB	305 x 355	355 x 406	406 x 455	480 x 535	535 x 585	610 x 660	710 x 710	785 x 785	890 x 890	965 x 965	1065 x 1065	1140 x 1140
Bed to Ram Bottom (D/L)	250	310	350	400	450	500	550	600	650	700	750	800
Stroke Length	55	65	80	95	110	125	140	150	165	165	175	175
Crank Shaft Dia	75	90	100	118	142	160	180	205	230	255	280	305
Back Shaft Dia	55	65	70	80	90	100	118	130	142	155	168	180
Gear Dia	455	560	635	685	787	915	1015	1117	1220	1320	1420	1525
Fly Wheel Dia	535	650	720	815	915	1015	1140	1270	1375	1525	1650	1775
Shank Hole Dia	28	32	35	38	45	51	57	63	70	75	82	90
Bed Bore	110	125	145	160	185	205	235	260	280	290	300	315
Motor Power Required	2 H.P	2 H.P	3 H.P	5 H.P	5 H.P	7.5 H.P	10 H.P	12.5 H.P	15 H.P	20 H.P	20 H.P	25 H.P
Total Height with Motor Plate	70"	78"	83"	90"	98"	106"	115"	120"	127"	132"	135"	141"
No. of Strokes P/M	85	80	75	65	60	55	50	45	40	40	35	30
Pully Size & Section of Belts	5 1/2" - B	6" - B	6" - B	7" - B	7" - C	8" - C	8" - C	8" - C	9" - C	9" - C	9" - C	9" - C

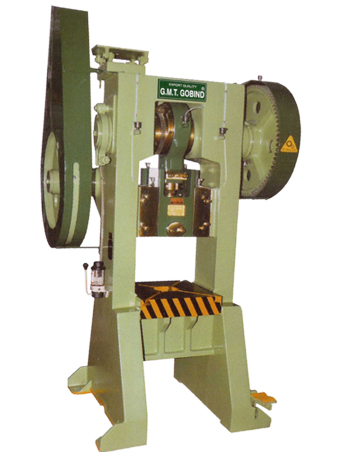

H Frame Power Press Machine
