Capacity in Tons	5 Tons	10 Tons	20 Tons	30 Tons	50 Tons	75 Tons	100 Tons	150 Tons	200 Tons	250 Tons
Bed Size FB X LR	265 x 405	305 x 460	380 x 560	430 x 660	508 x 762	560 x 835	635 x 915	710 x 1040	785 x 1170	860 x 1270
Bed to Ram Bottom (D/L)	230	250	310	350	400	450	500	550	600	650
Stroke Length	48	55	65	80	95	110	125	140	150	165
Crank Shaft Dia	65	75	90	100	118	142	160	180	205	230
Back Shaft Dia	50	55	65	70	80	90	100	118	130	142
Gear Dia	405	455	560	635	685	787	915	1015	1117	1220
Fly Wheel Dia	480	535	650	720	815	915	1015	1140	1270	1375
Shank Hole Dia	25	28	32	35	38	45	51	57	63	70
Bed Bore	90	110	125	145	160	180	205	235	260	285
Motor Power Required	1 H.P	2 H.P	2 H.P	3 H.P	5 H.P	5 H.P	7.5 H.P	10 H.P	12.5 H.P	15 H.P
Total Height with Motor Plate	65"	72"	80"	85"	92"	100"	108"	118"	125"	132"
No. of Strokes P/M	90	85	80	75	65	60	55	50	45	40
Pully Size & Section of Belts	5 1/2" - B	5 1/2" - B	6" - B	6" - B	7" - B	7" - C	8" - C	8" - C	8" - C	9" - C

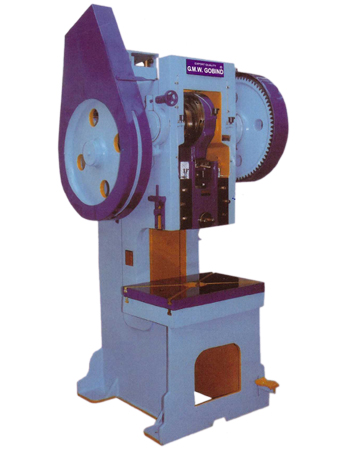

C Frame Power Press Machine
